Solar submersible pump

FSC6-49 Solar submersible pump

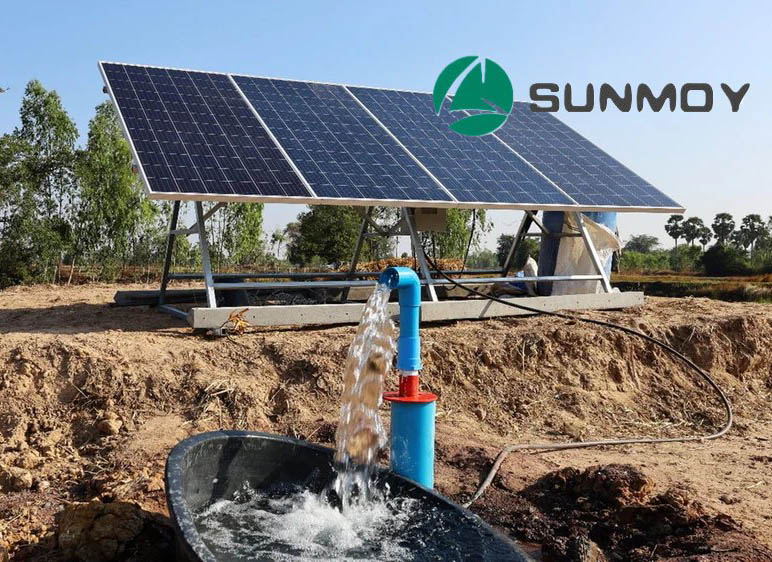

Solar-powered water pumps use the sun to generate power and efficiently move water from a well, storage tank, pond or other water sources to the desired location. They work well for irrigation, livestock, bird baths, and off-grid applications, and are an excellent alternative to traditional water pumps.


Profile:

Adopt stainless steel screw and rubber stator, permanent Magnet Brushless motor. With MPPT controller, the max efficiency is over 85%, raises 25% than the traditional AC pump.

2. Material:

1) Stainless steel casing, shaft core, coupling and pump body; copper alloy connecting, base; rubber stator of high-strength and wear-resistant.

2) Oil immersion style stainless steel submersible motor.

Product Feature:

1) Compact structure, high-lift, noiseless, pollution-free; complete electrical protecting controller device, against under-voltage, over-voltage, over-flow, overload, waterless etc; automatic recovery; controlling water height as demand.

2) Easy installation, maintenance-free, safe and reliable.

Application:

These electric pumps series are workable within maximum head, as there are no restrictions of BDC. With the addition of high head, high efficiency and wide high efficiency zone, they are suitable for distance water irrigation, high efficiency of increasing oxygen on aquaculture, pumping water from deep well, gardening, fountain and etc.

Working condition:

1) Non-corrosive water; the volume ratio of sand content no more than 1‰ particle size less than 0.2mm.

2) Max medium temperature up to +40 ; PH value remains 6.5-8.5.

3) Work close to the rated head and must be immersed in water.


Model

solar array voltage

 (V)

solar array power

 (W)

Best input voltage(DC)

Max Flow (M3/H)

Max Head (M)

Outlet       (IN)

Open circuit voltage (VOC)

FSC6-49-100-D380/7500

540

11250

480-620

49

100

3"

<680V

FSC6-49-129-D380/9200

540

13800

480-620

49

129

3"

<680V

FSC6-49-157-D380/11000

540

16500

480-620

49

157

3"

<680V

FSC6-70-32-D380/4000

540

6000

480-620

68

29

4"

<680V

FSC6-70-44-D380/5500

540

8250

480-620

68

44

4"

<680V

FSC6-70-61-D380/7500

540

11250

480-620

68

58

4"

<680V

FSC6-72-79-D380/9200

540

13800

480-620

68

78

4"

<680V

FSC6-72-95-D380/11000

540

16500

480-620

68

93

4"

<680V

FSC6-95-156-D380/30000

540

48000

480-620

95

156

4"

<680V

FSC6-95-190-D380/37000

540

60000

480-620

95

190

4"

<680V

FSC6-95-230-D380/45000

540

74500

480-620

95

230

4"

<680V

FSC6-95-290-D380/55000

540

90750

480-620

95

290

4"

<680V

FSC6-95-327-D380/63000

540

105000

480-620

95

327

4"

<680V

FSC6-95-387-D380/75000

540

123750

480-620

95

387

4"

<680V

FSC6-40-18-D110/1500-AD

144

2250

110-150

30

18

3"

<200V

FSC6-35-45-D220/2500-AD

288

3750

180-324

35

40

3"

<400V

FSC6-35-24-D110/1100-AD

144

1650

110-150

35

28

3"

<200V




Solar pumps are specifically designed to accept DC power directly from the solar modules and are optimized for operating under less-than-ideal sun conditions. Where conventional AC-powered pumps require a stable voltage and frequency to operate, solar pumps can operate over a wide range of voltage and available current.

Conventional AC-powered pumps require large amounts of power to move large volumes of water in a short period of time. Solar pumps typically move a smaller volume of water over an extended period of time. This method requires far less power, which minimizes the size and cost of the PV array.

There are several methods for pumping water in remote areas, such as windmills, gas/diesel pumps, and ram pumps. But most of these options are either too expensive to install, or for fuel and maintenance, or require specific site conditions to operate.

Solar pumps can work for most locations and are at full capacity when needed most: during warm, sunny days. In temperate regions, they can be used year-round—which can be particularly helpful for potable water, animal grazing, and other farming operations. For many sites, a solar pump is often the best.
