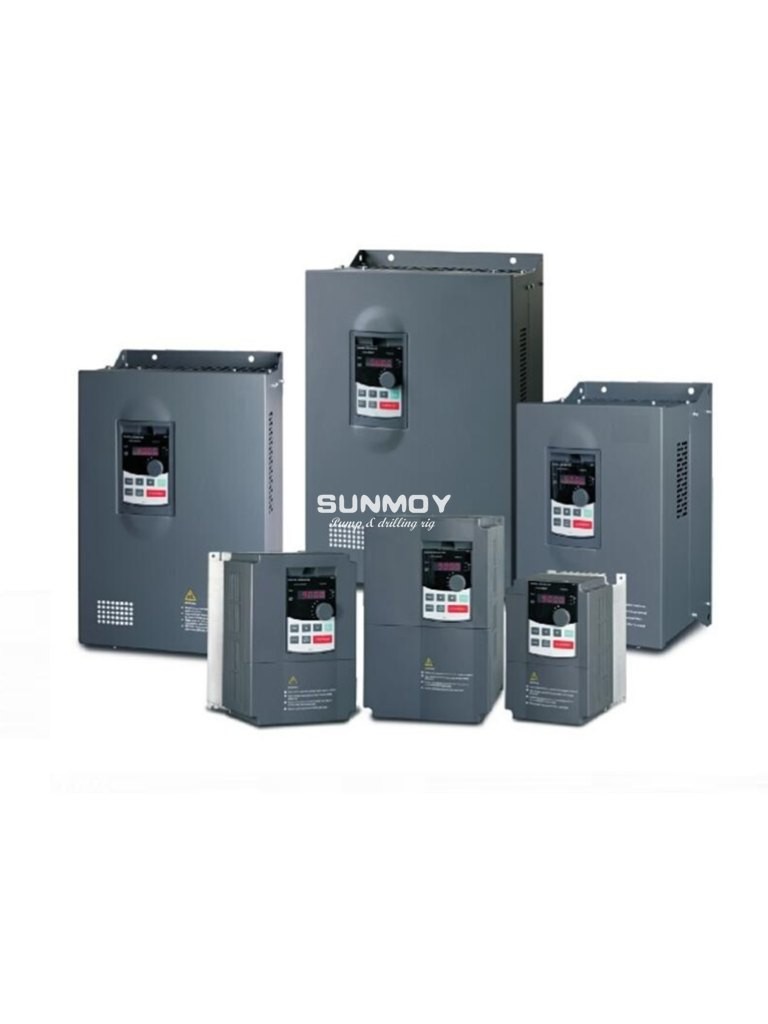

PIS G1 Series solar pump inverter

Brief Introduction:

Sunmoy PIS series inverter special for PV water pump adopts the high accuracy fast MPPT algorithms, tracking the PV array output by the maximum power point, driving the pump motor as much as possible to meet various pumping applications

The inverter special for PV water pump can support AC input besides support PV array DC input. When the PV array can not drive the motor or does not have output, it can also accept the grid AC input or other AC motor to supply the power to meet various emergency needs. PIS series inverter special for PV water pump provides full protection, maximizing the life of motor and pump.

Technique Features:

■ Built-in high precision PV array maximum power point tracking MPPT algorithms

■ Dry running mode monitoring, treatment

■ Tank water level control

■ Accept DC/ AC input

■ LED displays the real time situation and the parameter of system

■ Based on RS485 real time remote control system

■ Fast installation design, no need extra maintenance

■ Built-in full protection and diagnostic mechanism

Application filed:

Agriculture irrigation, grassland animal husbandry, forest irrigation, municiple warter,landscape fountain, fish pond, highway greening, coastal saltworks water supply and drainage, etc.

Capacity range:

Power range: 0.4-75kW

Output frequency: 0-400Hz 3-phase 220V

Input voltage range:

1: DC 200V-380V,1-phase AC220V

2: DC 200V-380V,3-phaseAC220V

3: DC 350V-750V,3-phaseAC380V

PIS G1 Series (DC200~440V or AC220V±10% Single phase Input)
